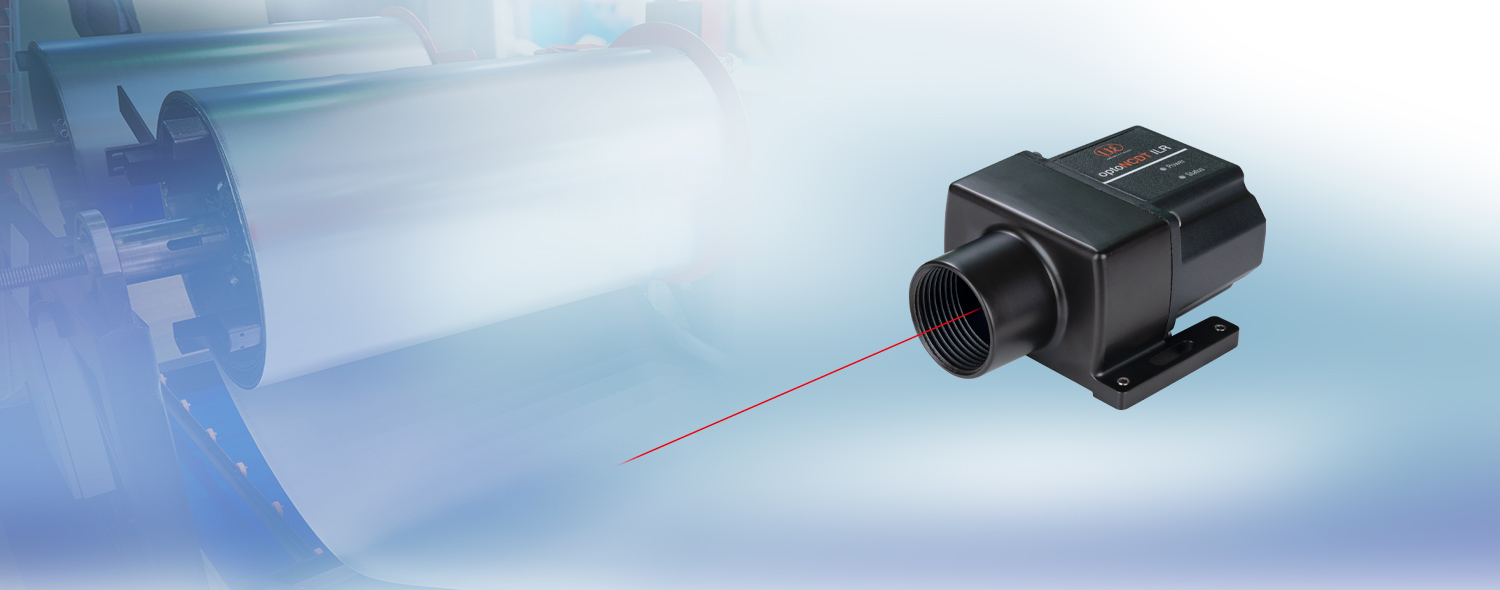

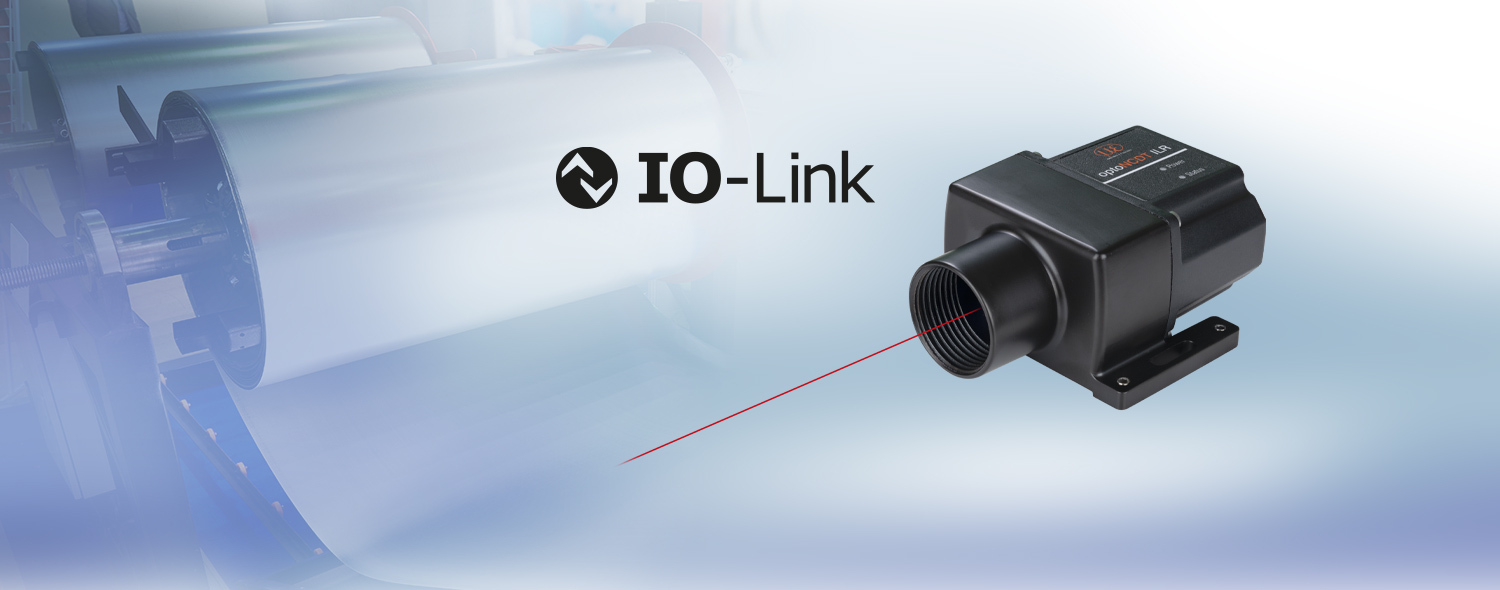

Powerful laser distance sensor
The optoNCDT ILR3800-100 laser distance sensor stands out in particular due to its high performance in a compact design. It is designed for precise distance measurements in industrial environments. Distance measurements up to 100 m are possible. With reflector even up to 150 m. The integrated AUTO measurement mode enables reliable measurement even on dark, partly reflecting and remote measuring objects. Thanks to the very high signal stability, ILR3800-100 sensors can be used for distance measurements on numerous surfaces
Characteristics
- Large measuring range up to 100 m (with reflector up to 150 m)
- Very high signal stability on numerous surfaces
- Linearity <±1 mm
- Repeatability <300 µm
- Resolution 0.1 mm
- Analog output and digital interfaces (RS422 / USB / PROFINET / Ethernet/IP / IO-Link)
- Robust sensor design
- Compact and lightweight design
- Ideal for industrial applications in series production
- High protection class IP67 for outdoor use
Compact sensor design for versatile measurement tasks

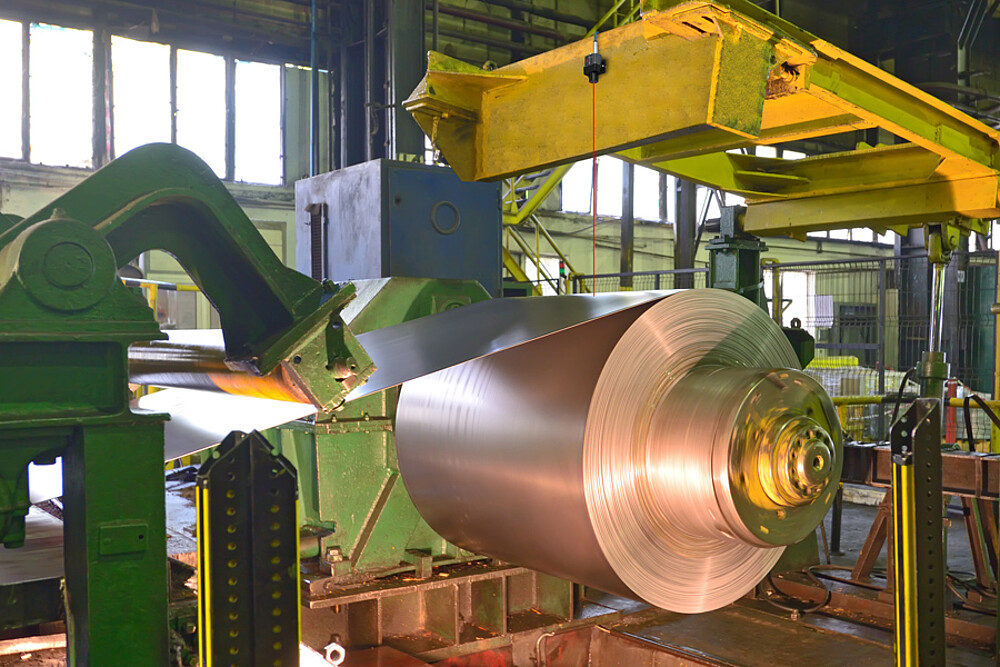

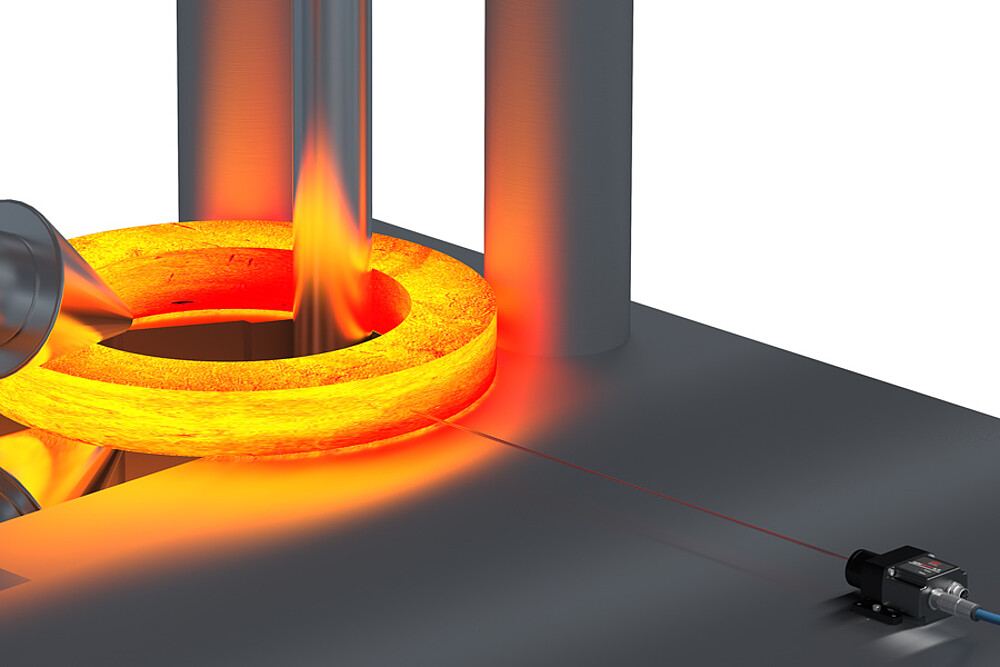

The laser distance sensor impresses with very high signal stability and is, among other things, used in logistics and automation technology, the metals industry and production monitoring. The robust aluminum housing and low weight allow easy integration into numerous industrial environments.

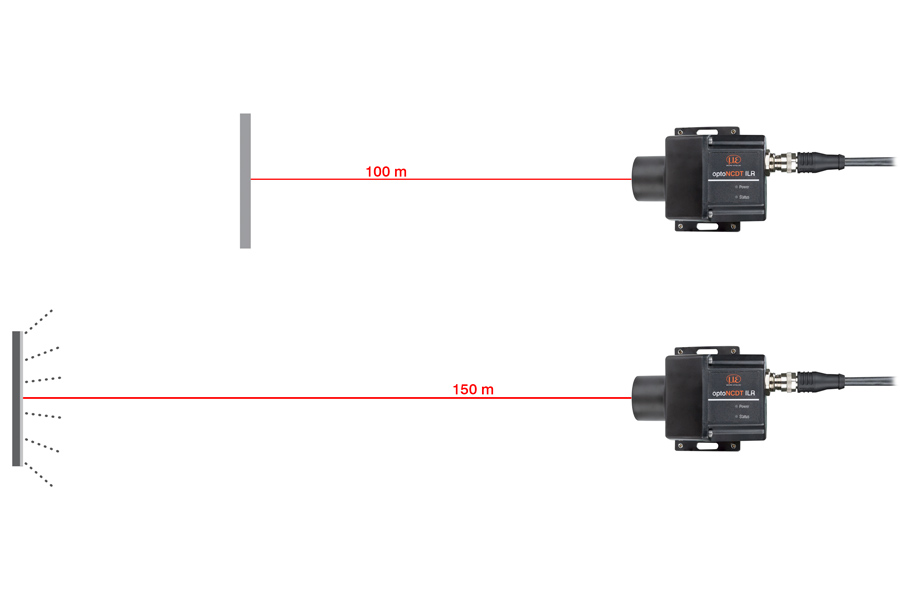

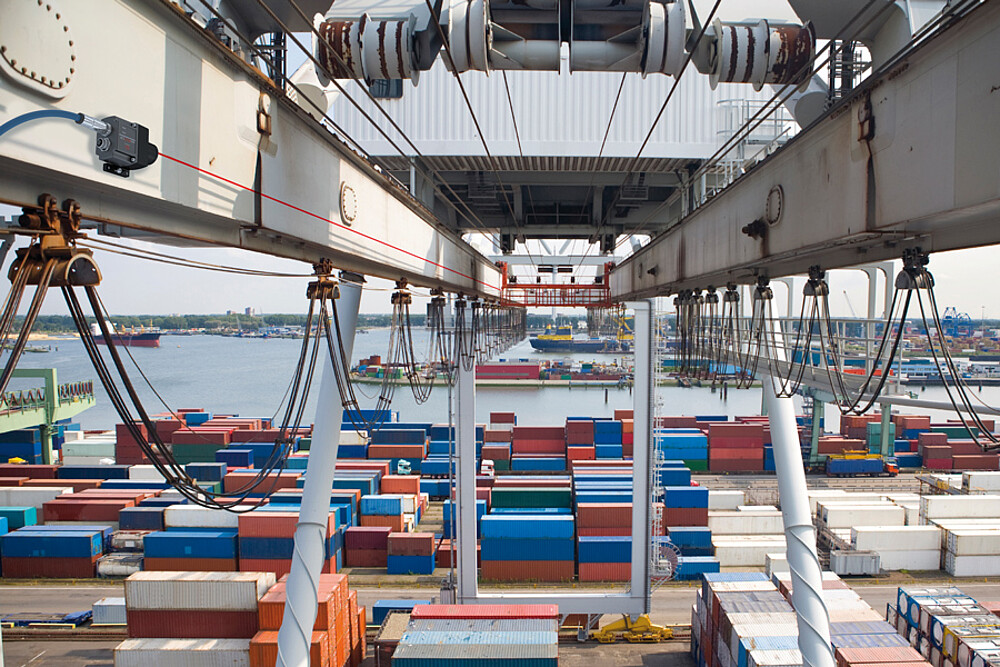

The ILR3800-100 detects distances up to 100 m (without reflector), with reflector up to 150 m. This means the sensor is suitable for measurements tasks in logistics, factory and plant automation, as well as in drone applications for distance measurements from the air.
New ILR3800-100-H with integrated heating for outdoor use
The ILR3800-100-H model has an integrated heating and cooling element that enables operation in the temperature range of -40 to +55 °C. This makes the sensor perfectly suitable for permanent outdoor use.

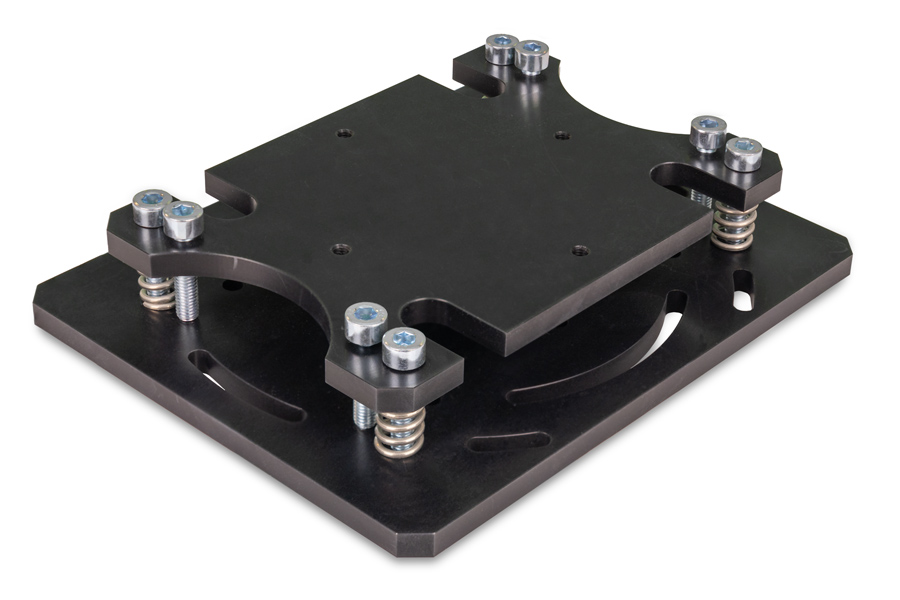

Mounting plate as optional accessory
You can easily replace the previous ILR2250-100 model with the new ILR3800-100 laser distance sensor. The mounting plate makes the changeover quick and easy.
