Next generation confocal chromatic sensor system
The confocalDT IFD2415 and IFD2410 are powerful confocal sensors with integrated controller. The space-saving IP65-housing enables fast integration into plant equipment and machines as no optical fiber is required. Furthermore, the IFD2410 and 2415 are ideally suited to high precision distance and thickness measurements in industrial series applications. In addition, the IFD2415 can be used with transparent materials for multi-layer thickness measurements of up to 5 layers. The active exposure time regulation of the CCD line enables fast and stable measurements of varying surfaces even in dynamic processes up to 25 kHz. The measuring system is also characterized by high luminous intensity which enables fast and reliable measurements even on dark surfaces.
Podrobnosti
- Measuring ranges (mm): 1 | 3 | 6 | 10
- Adjustable measuring rate up to 25 kHz
- Resolution from 8 nm
- Linearity from 0.25 µm
- For precise distance and thickness measurements up to 5 layers

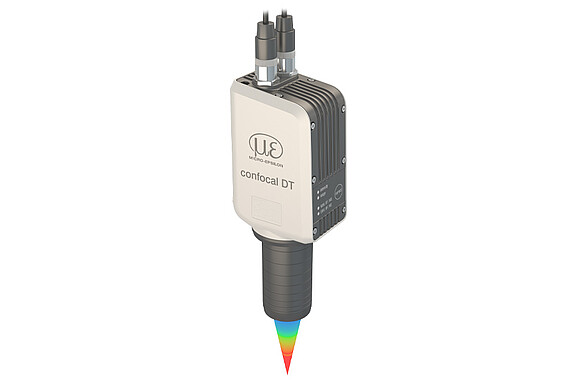

- All-in-one: sensor and controller in one compact housing
- Easy integration, as no fiber optics required
- Robust IP65 aluminum housing
- Direct PLC connection due to Industrial Ethernet
- Ideal for series applications
Now with integrated Industrial Ethernet interface
Their integrated Industrial Ethernet interface (EtherCAT) allows for the IFD2410/2415 sensors to be directly integrated into the PLC without any additional interface module. You benefit from real-time data without time delay as well as reduced installation and wiring effort. The sensor is parameterized in Ethernet mode via the intuitive web interface. Industrial Ethernet ensures that the settings are automatically applied to the PLC environment. This eliminates time-consuming setting efforts in the programming environment.

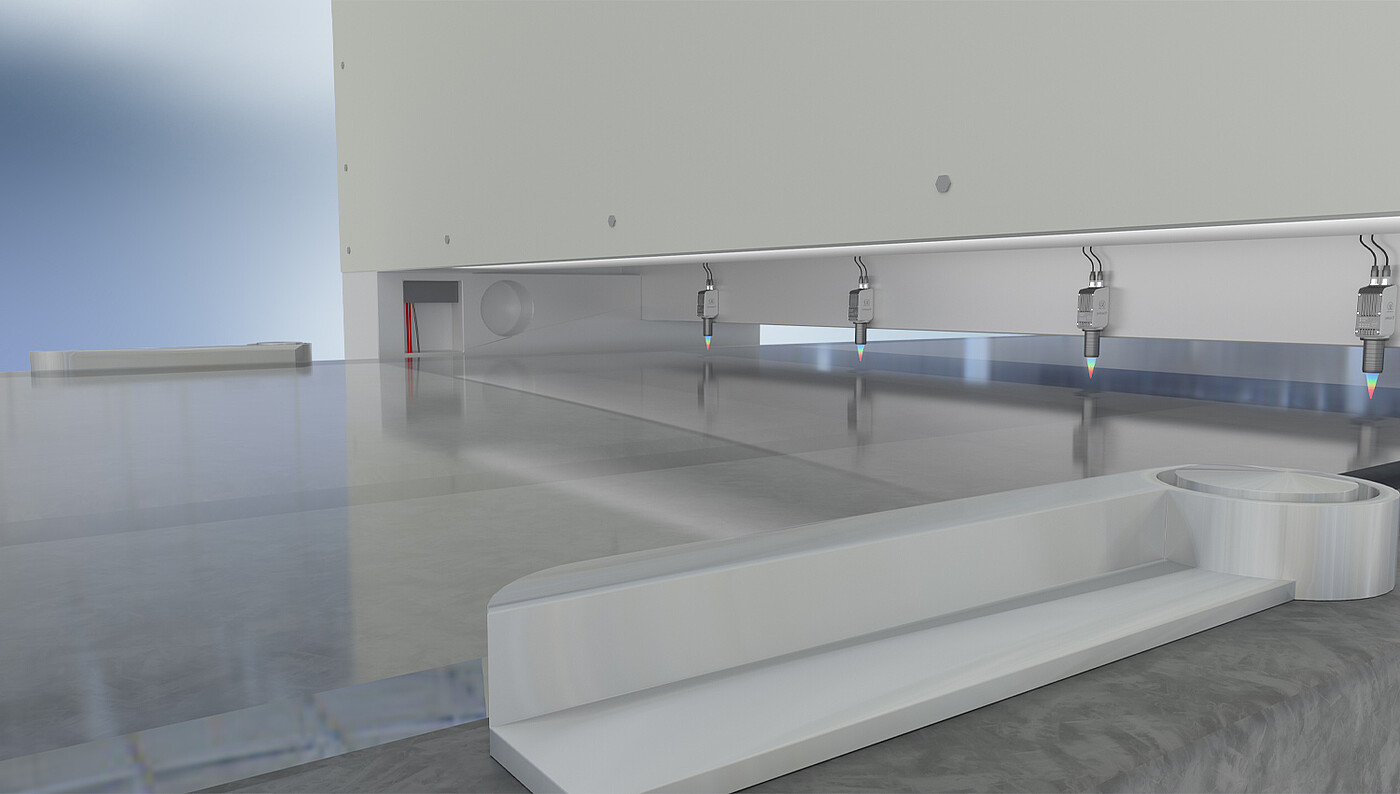

Easy integration in plants and systems

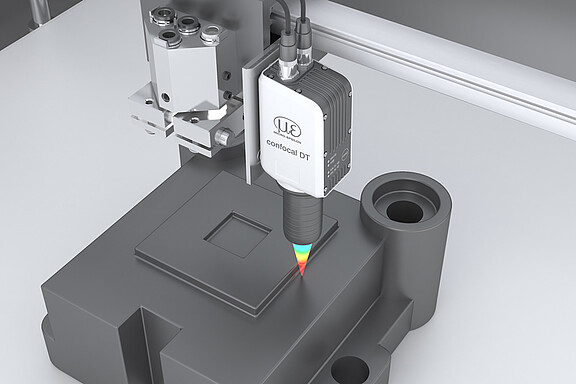

The space-saving IP65-housing enables fast integration into plant equipment and machines as no optical fiber is required. Due to the compact design of sensor and controller in one housing, the measurement signal is transmitted directly to the controller and evaluated there. The sensor is mounted either via three threaded holes in the controller housing or via a radial clamp on the sensor head. The versatile connection options via EtherCAT, analog, encoder or RS422 allow easy integration into existing plants and systems.
Snadné použití přes webové rozhraní
Vzhledem k uživatelsky přívětivému webovému rozhraní se celý proces konfigurace provádí bez jakéhokoliv dalšího softwaru. Webové rozhraní je přístupné přes Ethernet a poskytuje nastavení a možnosti konfigurace. Materiály jsou uloženy v rozšiřitelné databázi materiálů.
