Compact and reliable laser distance sensor
The optoNCDT ILR104x laser distance sensors are designed for distance measurements of 10 meters without reflector film and 60 meters with reflector film. The sensors are characterized by a high degree of protection and resistance to ambient light. The ILR104x sensors can be put into operation quickly and easily via the IO-Link interface. Due to its rotatable cable outlet and its compactness, the sensor can also be mounted in difficult-to-access and narrow places.
Characteristics

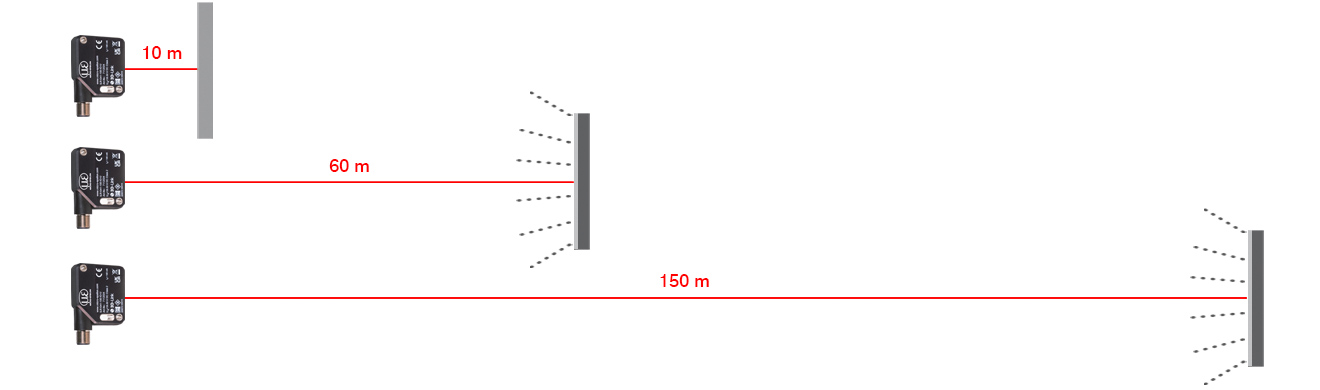

- Measuring range without reflector 10 m
- Measuring range with reflector 60 m
- Linearity ± 20 mm
- Resolution of 1 mm
- Resistance to ambient light up to 50,000 lx
- Reliable and precise measurement on various surfaces
- Compact and robust IP69K housing
- Easy alignment to the target object
- Laser class 1
