Měření tloušťky profilů ve válcovacích zařízeních

Bezkontaktní inline měření tloušťky profilů ve válcovacích zařízeních (o tloušťce od 0,3 mm do 18 mm)

Pro výrobu rezistorů nebo tenkých a rozměrově plochých výrobků ve válcovacích zařízeních je měření tloušťky základním faktorem pro řízení a sledování výrobního procesu. Použitím systémů řady RTP lze měřit tloušťku profilu v různých třídách přesnosti a o různé tloušťce a šířce materiálu.

Výhody:

  • Trvale vysoká kvalita produktu při současném snížení spotřeby material
  • Rychlé ovládání během ohřevu nebo změny výrobku díky adaptivní rychlosti posuvu a vysoce dynamickému měření
  • Žádné další náklady z důvodu izotopů nebo rentgenových paprsků
  • Měření bez opotřebení na rozdíl od radiometrických testů
  • Nejvyšší teplotní stabilita díky kalibračním prvkům in-situ
  • Zákaznicky specifické rozhraní

Parametry materiálu:

  • Šířka materiálu od 50 mm do 3800 mm
  • Dodávka materiálu do 25 m/min
  • Povolená teplota povrchu materiálu max: 100°C



Výrobky řady RTP jsou navrženy jako C- nebo O-rámy, které jsou vybaveny senzorovou technologií specifickou pro jednotlivé aplikace (thru-beam, triangulace nebo laserová triangulace).

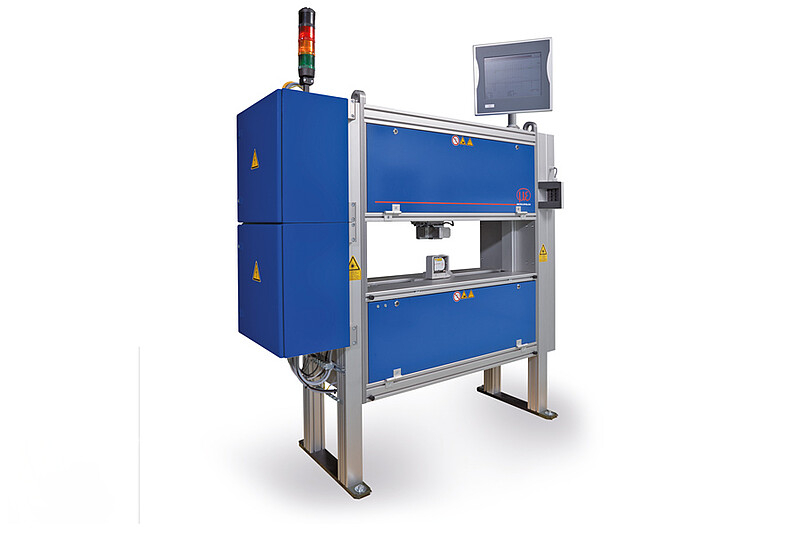

The system RTP 8301.EO operates according to a combination principle consisting of a thru-beam sensor, an eddy current sensor and a measuring roller. The eddy current sensor and the thru-beam sensor are applied on an innovative measuring clamp. Since the sensor measures the distance from the clamp to the roller, the lower side of the material is detected. As the sensor performance is specially aligned with the measuring task a huge measuring gap is possible while offering highest precision. The thru-beam sensor detects the upper side of the material. The thickness of the target is the difference between the two signals. The measuring clamp is equipped with a pneumatically cleaning mechanism and therefore ideal for the application in harsh environment. The profilometer corresponds to the TIP 8301 regarding its functionality. However, it has a different operators´ frontend and evaluation functions.

Special features:

  • Linearity ±5µm
  • Measuring gap 15mm
  • Dimensional thickness measurement, independent from material components

The RTP 8301.CT is based on laser triangulation sensors and therefore ensures the measurement being independently from material constants. The system is designed as O-frame, both sensors detect the thickness according to the differential method. In order to ensure highest precision, the laser beams of the sensors are accurately adjusted during the production process using optoelectronic tools which have been specially developed. The system is ideal for monitoring high-dynamically processes due to its high measuring rate. The O-frame mechanics of the system dispose of a compensation frame which does not vary with temperature and which is used in order to avoid temperature fluctuations of the measuring frame using further sensors. The profilometer corresponds to the TIP 8301.CT regarding its functionality. However, it has a different operators´ frontend and evaluation functions.

Special features:

  • Linearity ±5µm
  • Measuring gap 18mm
  • Dimensional thickness measurement, independent from material components

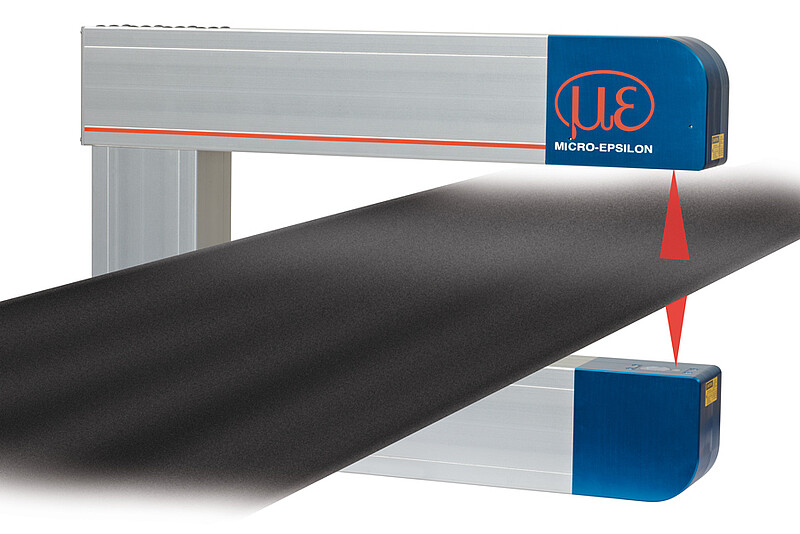

The RTP 8302.T is based on the laser triangulation sensors and therefore ensures the measurement being independently from material constants. In order to ensure highest precision, the laser beams of the sensors are accurately adjusted during the production process using optoelectronic tools which have been specially developed. The system is ideal for monitoring high-dynamically processes due to its high measuring rate. The C-frame mechanics of the system disposes of an automated in-situ calibration in order to avoid interferences caused by temperature.

Special features:

  • Linearity from ±5µm
  • Measuring ranges up to 20mm
  • Immersion depth from 50° to 1,000mm
  • Special sizes on request
  • Measuring rate to 20kHz

The RTP 8302.LLT is based on the laser line triangulation sensors and therefore ensures the measurement being independently from surface characteristics of the target material. Combined to point sensors, the system offers more precision in the case of gap width. The C-frame mechanics of the system disposes of an automated in-situ calibration in order to avoid interferences caused by temperature.

Special features:

  • Linearity ±10µm, 40mm measuring range
  • Gap width 300mm
  • Immersion depth from 50° to 1,000mm
  • Special sizes on request
  • Measuring rate to 2kHz
