Mechanika lankových snímačů pro specifické montáže enkodérů
Mechaniky snímačů sérií P60, P96, a P200 zajišťují jednoduchou montáž inkrementálního nebo absolutního enkodéru. Kromě toho uživatel si může individuálně vybrat rozhraní, rozlišení a typ připojení. Díky jejich robustnímu hliníkovému pouzdru jsou ideální pro průmyslové měřící aplikace.

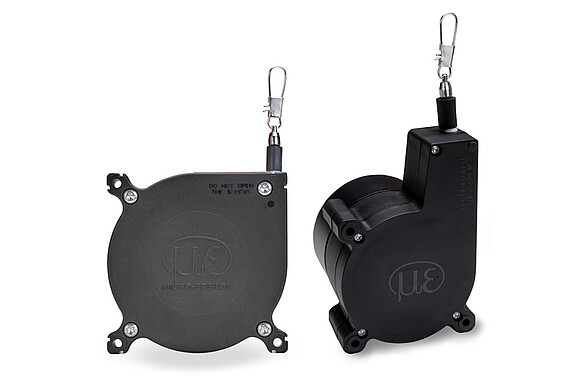

The MK wireSENSOR mechanisms are designed for easy mounting of an incremental or absolute encoder. Therefore, the user can individually choose the interface, resolution and connection type. Due to their compact design, the mechanics can also be integrated into confined installation spaces.
- Measuring ranges (mm): 1,500 | 2,400 | 2,500 | 3,500 | 5,000 | 8,000
- Linearity ± 0.01 % FSO
- Output types: dependent on encoder
- Almost any encoder can be mounted
- Robust plastic housing
- High quality precision components
- OEM models available on request
- Catalog wireSENSOR draw-wire mechanics (Draw-wire mechanics for installation of rotary encoders) (pdf, 2.63 MB)
- Operating Instructions, wireSENSOR, WPS Draw-Wire Mechanics (pdf, 963.27 KB)
- Setup Guide wireSENSOR WPS series, mechanism (pdf, 1.12 MB)
- Operating Instructions wireSENSOR WPS, Draw-wire Mechanisms K100-M (pdf, 1.75 MB)
- Setup Guide wireSENSOR WPS series, mechanisms K100-M (pdf, 2.77 MB)

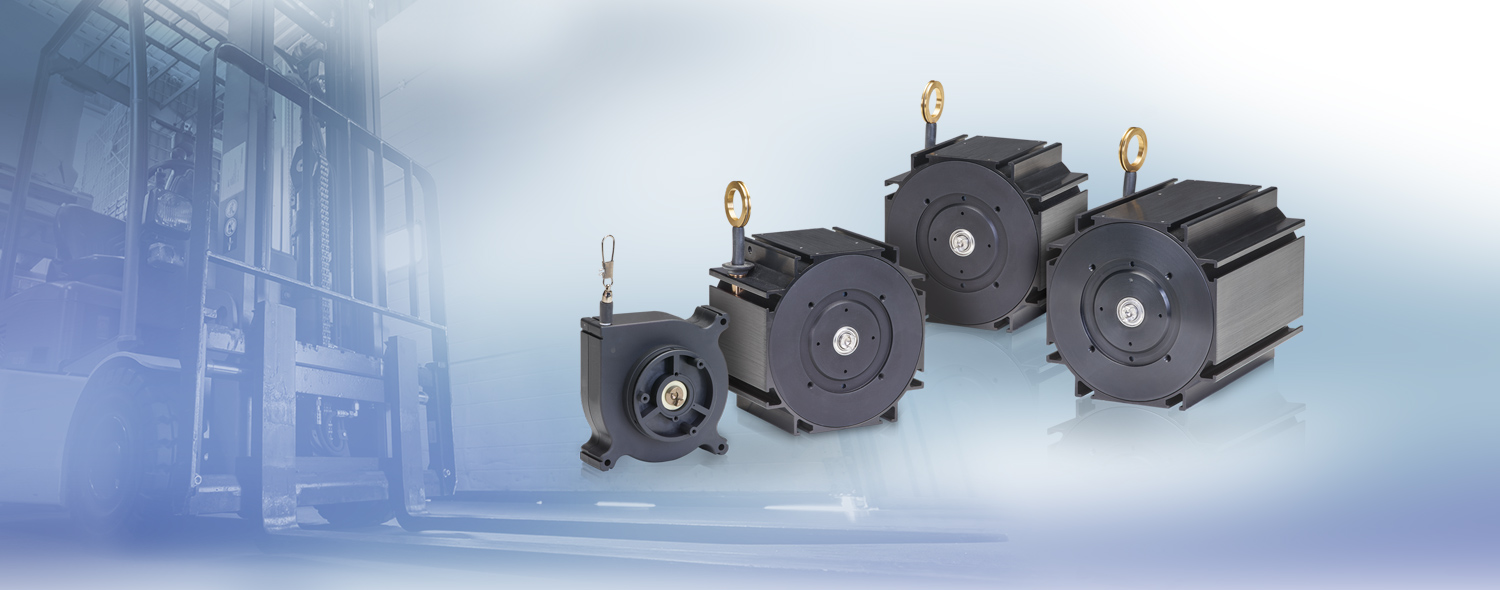

Mechaniky wireSENSOR typových řad P60, P96, P115 a P200 jsou koncipovány tak, že je zajištěna jednoduchá montáž inkrementálního, resp. absolutního dekodéru. Tak je možno individuálně určit volbu rozhraní, rozlišení a způsob připojení.

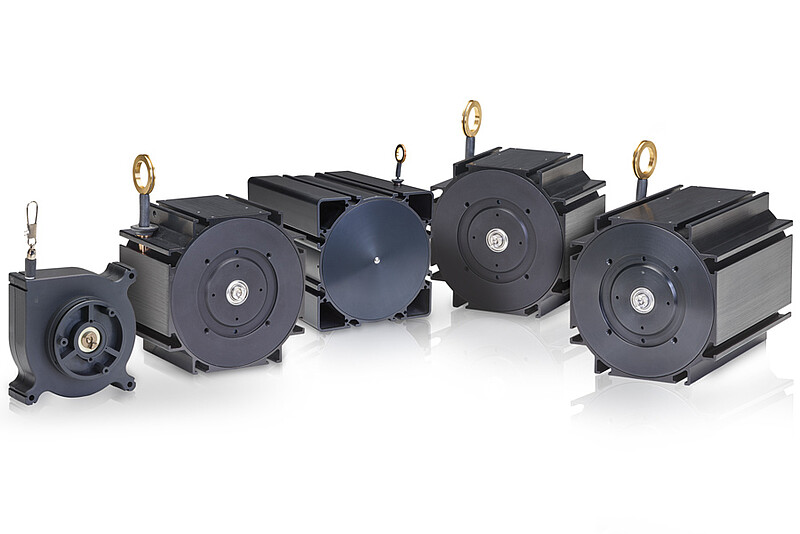

- Měřící rozsah (mm): 1,500 | 3,000 | 5,000 | 7,500 | 10,000 | 15,000 | 30,000 | 40,000 | 50,000
- Linearita ± 0,01 % F.S.O.
- Výstupní signál: závisí na enkodéru
- Lze namontovat téměř každý dekodér
- Robustní hliníkové pouzdro
- Velmi kvalitní přesné komponenty
- Mnoho různých provedení
- Catalog wireSENSOR draw-wire mechanics (Draw-wire mechanics for installation of rotary encoders) (pdf, 2.63 MB)
- Operating Instructions wireSENSOR take up spool (Z60 / P96 / P115 / P200) (pdf, 1.47 MB)
- Setup Guide draw wire sensor take up spools (pdf, 456.57 KB)
- Operating Instructions wireSENSOR mechanism P85 (pdf, 1.08 MB)
- Setup Guide wireSENSOR mechanism P85 (pdf, 615.11 KB)
- CAD file 3D-model "WDS mechanics", STEP (zip, 2.86 MB)
- CAD file 3D-model "wireSENSOR accessories", STEP (zip, 112.92 KB)
