New class: confocal controller for industrial series applications

Kompakter konfokaler Controller für industrielle Serienanwednungen

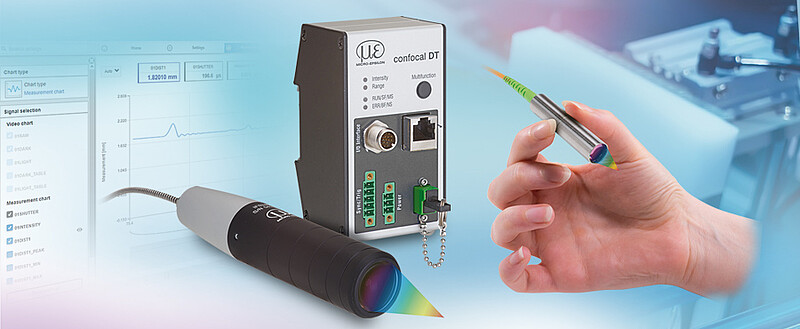

The new confocalDT IFD2411 system is optimized for industrial series applications. It is supplied as a complete channel and is factory-calibrated to sensors with measuring ranges, 1, 2, 3 or 6 mm. The controller can be easily integrated into the control cabinet via integrated DIN rail mounting. With a measuring rate of up to 8 kHz and a resolution of up to 12 nm, the IFD2411 offers maximum application versatility for distance and thickness measurements, e.g. in machine building as well as in glass and smartphone production. The built-in Industrial Ethernet interface (EtherCAT) integrates the powerful sensor system directly into the PLC.

Advantages

  • Compact controller for precise distance and thickness measurements
  • Ideal for integration into control cabinets
  • High resolution and measuring rate
  • Intuitive operation via web interface
  • Optimized for industrial series applications
  • Industrial Ethernet interface (EtherCAT)
